⚙️ Full Specifications

motor

Displacement

1731.0 ccm (105.63 cubic inches)

Power

97.0 HP (70.8 kW ))

Compression

9.4:1

Bore x Stroke

101.0 x 108.0 mm (4.0 x 4.3 inches)

Valves per Cylinder

Fuel System

Injection. 45mm throttle bodies

Cooling System

Oil & air

Gearbox

6-speed

Clutch

Wet, multiplate

Exhaust System

Split dual exhaust with crossover

Starter

Electric

sasi

Trail

137 mm (5.4 inches)

Front Suspension

Conventional telescopic fork, 43mm diameter, 5.1in/130mm travel

Rear Suspension

Single, mono-tube gas,cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring

Front Brakes

Single disc. Floating rotor with 3-piston caliper

Rear Brakes

Single disc. Floating rotor with 2-piston caliper

Front Tyre

130/70-R18

Rear Tyre

180/60-R18

boyut

Overall Length

2629 mm (103.5 inches)

Seat Height

673 mm (26.5 inches) If adjustable, lowest setting.

Ground Clearance

147 mm (5.8 inches)

Dry Weight

369.0 kg (813.5 pounds)

Power/Weight Ratio

0.2629 HP/kg

Fuel Capacity

17.03 litres (4.50 US gallons)

Oil Capacity

4.70 litres (4.97 US quarts)

diger

Color Options

Ness Series Custom Color

Article ID

28517

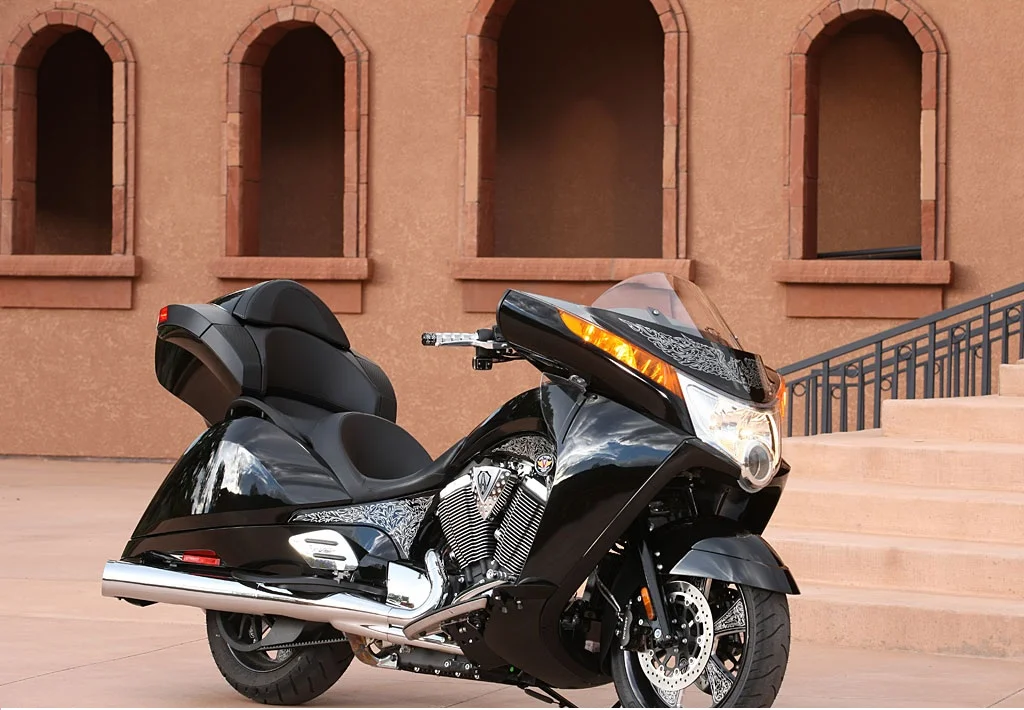

Victory Arlen Ness Victory Vision
