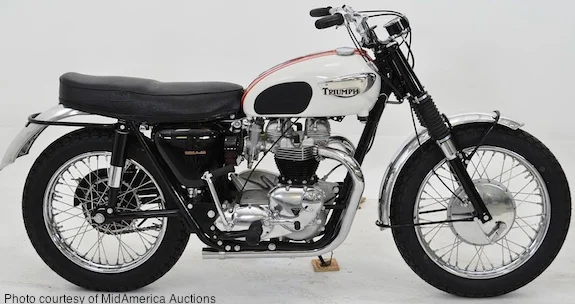

Triumph Bonneville T 120 TT

1966

Year1966

MakeTriumph

Displacement649.0 ccm (39.60 cubic inches)

Triumph Bonneville T 120 TT - No Image Available

📖

Review

⌄

⚙️ Full Specifications

motor

Engine Type

Twin, four-stroke

Displacement

649.0 ccm (39.60 cubic inches)

Power

52.0 HP (38.0 kW )) @ 6500 RPM

Top Speed

185.0 km/h (115.0 mph)

Compression

11.0:1

Bore x Stroke

71.0 x 82.0 mm (2.8 x 3.2 inches)

Fuel System

Carburettor. Amal monobloc carburettor

Cooling System

Air

Ignition

AC energy transfer (ET)

Gearbox

4-speed

Clutch

Multi-plate, wet

Driveline

Constant-mesh, right-foot shift

Starter

Kick

sasi

Frame Type

Brazed lug, full-cradle, single downtube

Front Suspension

Telescopic fork, hydraulic damping.

Rear Suspension

Swing arm, 2 Girling dampers

Front Brakes

Expanding brake (drum brake)

Rear Brakes

Expanding brake (drum brake)

Front Tyre

3.50-19

Rear Tyre

4.00-18

Wheels

Wire spoked

Seat

Dual seat

boyut

Seat Height

775 mm (30.5 inches) If adjustable, lowest setting.

Ground Clearance

127 mm (5.0 inches)

Dry Weight

165.0 kg (363.8 pounds)

Power/Weight Ratio

0.3152 HP/kg

Fuel Capacity

9.46 litres (2.50 US gallons)

diger

Color Options

Red/white

Electrical

Lucas RM19 alternator, 12-volt electrics

Article ID

41804
